OEM Laser Portable Methane Gas Detector CH4 In PPM LEL VOL

  • 1
  • 2
  • 3

Brand Name : AiLF

Payment Terms : T/T

Certification : ATEX

Display Unit : PPM %LEL %VOL

Humidity Range : 0-98% RH (non-condensing)

Supply Ability : 300 Unit per Month

Detection Gas : Methane (CH4)

Detection Method : TDLAS

Operating Temperature : -20°C to 50°C

Dimensions : 225mm x 82mm x 54mm (excluding probe)

Alarm Type : Audible and visual alarms

Weight : Approx. 0.56kg

Packaging Details : 38*33*18CM 3.6kg

Model Number : C10F

MOQ : 1

Delivery Time : 5-7 Work Days

Battery Life : 10 hours continuous use

Price : $5000

Response Time : < 0.2 seconds

Detection Range : 0-100%VOL

Power Supply : Rechargeable lithium-ion battery

Place of Origin : Shandong,China

Optional Accessories : Sampling probe, portable bag

Contact Now

Internal Pump Portable Laser Methane Detector Handheld Natural Gas Laser Chamber Methane Leakage Detector

Description:

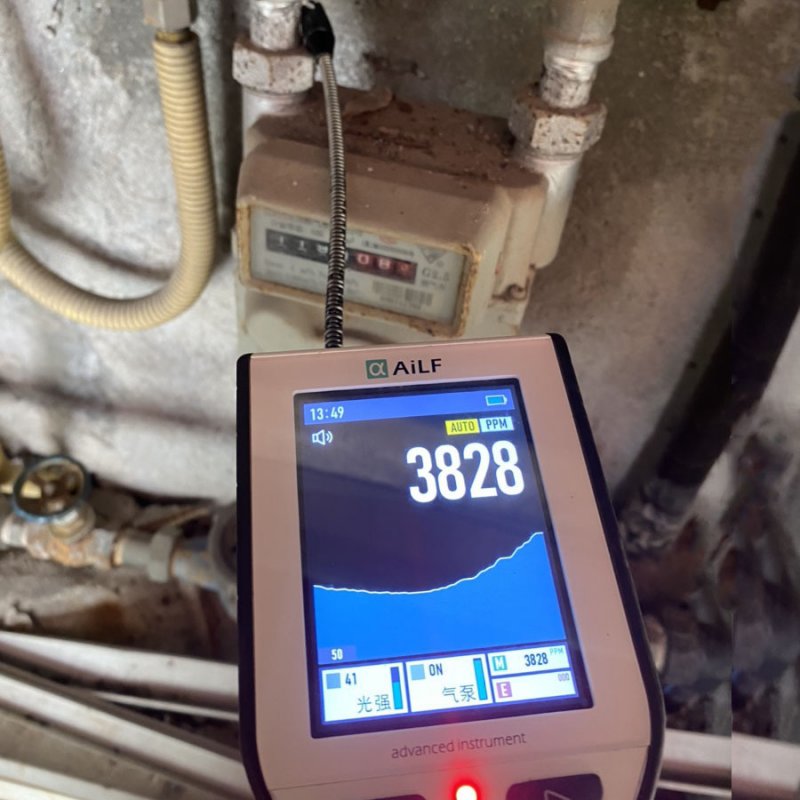

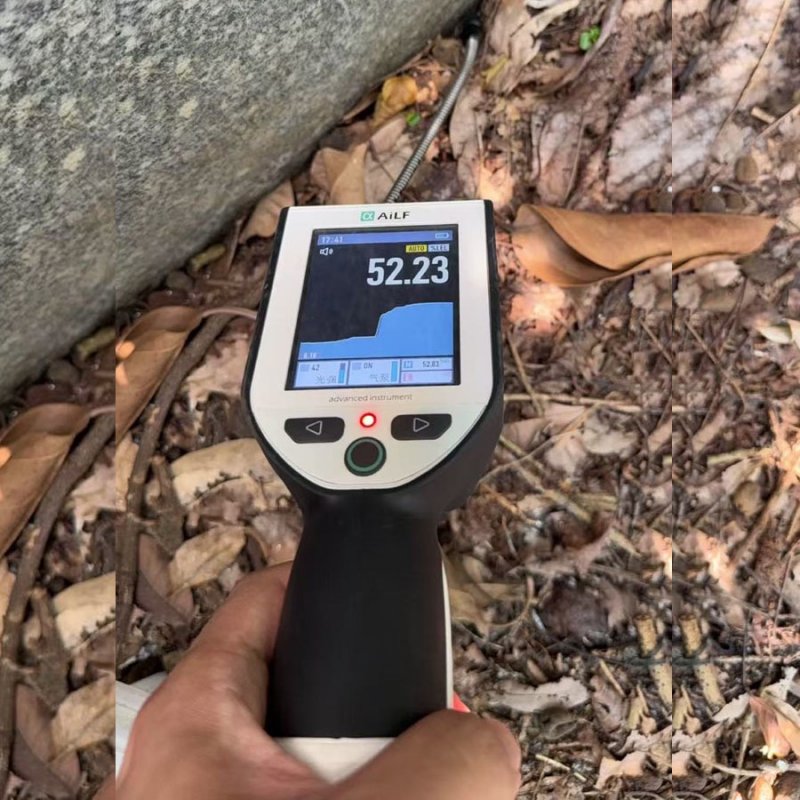

The handheld Laser methane leak detector is a device that can detect methane and natural gas leaks with a laser beam. With advanced TDLAS technology, the laser methane leak detector instrument can be used for better quantification of ch4. Suitable for the detection of leaks in underground and above ground pipelines. The methane absorbs a portion of the light that, upon reflection, is detected by the handheld laser methane leak detector unit. Handheld laser detector for fast and safe detection of methane leaks. C10F Handheld portable Laser methane Leak detector is designed with internal pump and TDLAS technology. It has stable performance and high precision. C10F handheld laser methane detector has good performance of full-range detection, supports readings of concentration in ppm, %LEL and %VOL.

Auto

With the built-in gas reference, C10F handheld laser methane detector can continuously self-calibrate during operation to ensure accurate detection. Laser technology is superior to the traditional sensor without any failure or getting disabled, it's truly realized self-calibration(calibration free).

APP
Support Bluetooth connection with inspection app AlphaOne
Support access to external or user's information platform

Water and Dust Resistant, Grade IP66
Applicable to explosive environment, Grade EXib IIC T3
Capable of adapting to various working conditions like indoor,wild field,station,pipelines with reliability,durability,safety and stability.
Long endurance, fast charging, and Type C interface working with low temperature resistance battery pack can ensure a-day-long
working even in extremely cold regions.

Through the rear EZG gas interface, C10 can be connected with the accessories like gooseneck and sampling probe in a convenient and fast

manner for replacing and checking filter.
Model C10F Detection Gas Methane(Ch4)
Measure Principle Lase Absorption Spectrum Display Unit PPM,%LEL,%VOL
Static Detection Limit 1 PPM Explosion-Proof Grade
Exib IIC T3 Gb
Response Time 0.2s
Operating Temperature
 -20~50ºC
Concentration Range 0~100%VOL Operating Humidity <98%RH,No condensation
Enclosure Protection Glass IP66 Main Unit Dimension 225x82x54mm(excluding probe)
Power supply and endurance Lithium battery>10h Main Unit Weight 0.56kg

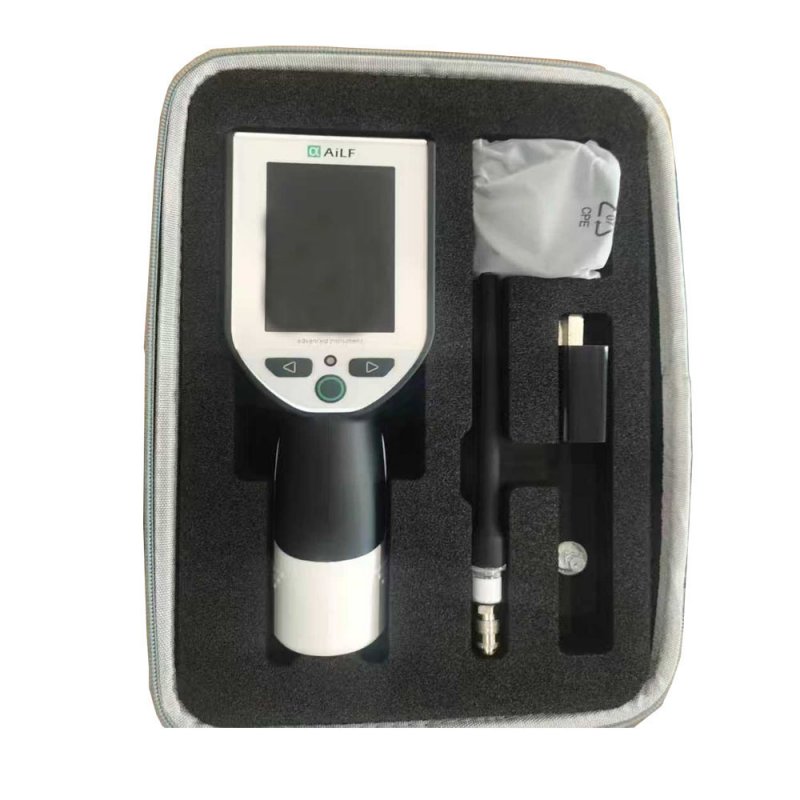

Accessories
 Goosenneck Probe Optional Accessories Sampling probe,Portable bag

Application:
Natural Gas Leak Detection:
Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.
Industrial Monitoring:
Detecting leaks in chemical plants, refineries, and other industrial facilities.
Environmental Monitoring:
Measuring methane emissions from various sources, including landfills and agricultural activities.

OEM Laser Portable Methane Gas Detector CH4 In PPM LEL VOL

OEM Laser Portable Methane Gas Detector CH4 In PPM LEL VOL

OEM Laser Portable Methane Gas Detector CH4 In PPM LEL VOL

OEM Laser Portable Methane Gas Detector CH4 In PPM LEL VOL

OEM Laser Portable Methane Gas Detector CH4 In PPM LEL VOL
